Fastening covers and protection caps
We have been manufacturing and marketing patented fastening covers and protection caps by thermoforming plastics in collaboration with Kittmann Technische Produkte since 2006.
Due to the minimal material input in the thermoforming-process in comparison to other manufacturing methods, our covers can result in substantial cost reductions in some cases.
In our efforts to achieve optimal function of our products and our aim to meet all customer requirements, we continuously improve our products with new functions and features.
The granting of several patents is evidence of the innovative spirit that has been invested in the design of this product group over the years.
In 2020, in addition to the toolmaking and series production which had been previously implemented, Lehmann & Frommelt Thermoformung also took over the direct management, new and further development and sales of this group of items from Kittmann.
We will also continue to integrate new functions and features in the future for the benefit of our customers and continue developing our advantage over our competitors, which has been shown by our most recent patent applications.

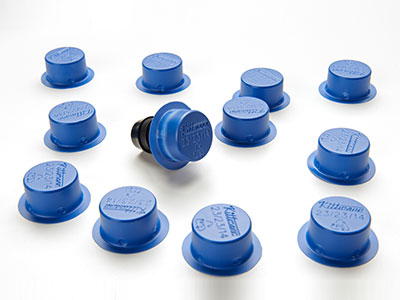

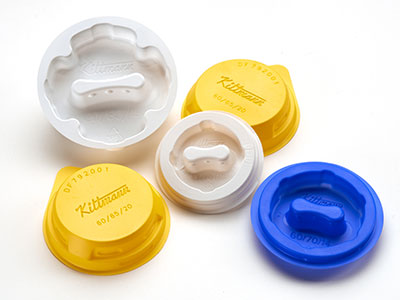

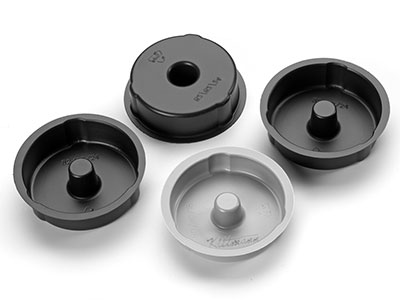

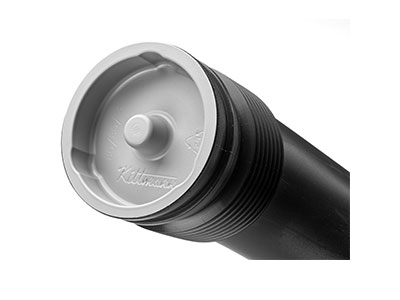

The table below shows a selection of previously implemented fastening covers (fixed on the inside of the tube) and protection caps (fixed over the outside of the nozzle) from our “KITTMANN”-group of products, most of which are available from stock.
We look forward to receiving your inquiry, which you can send to our responsible specialist department at: b.haehnel@lefro.de

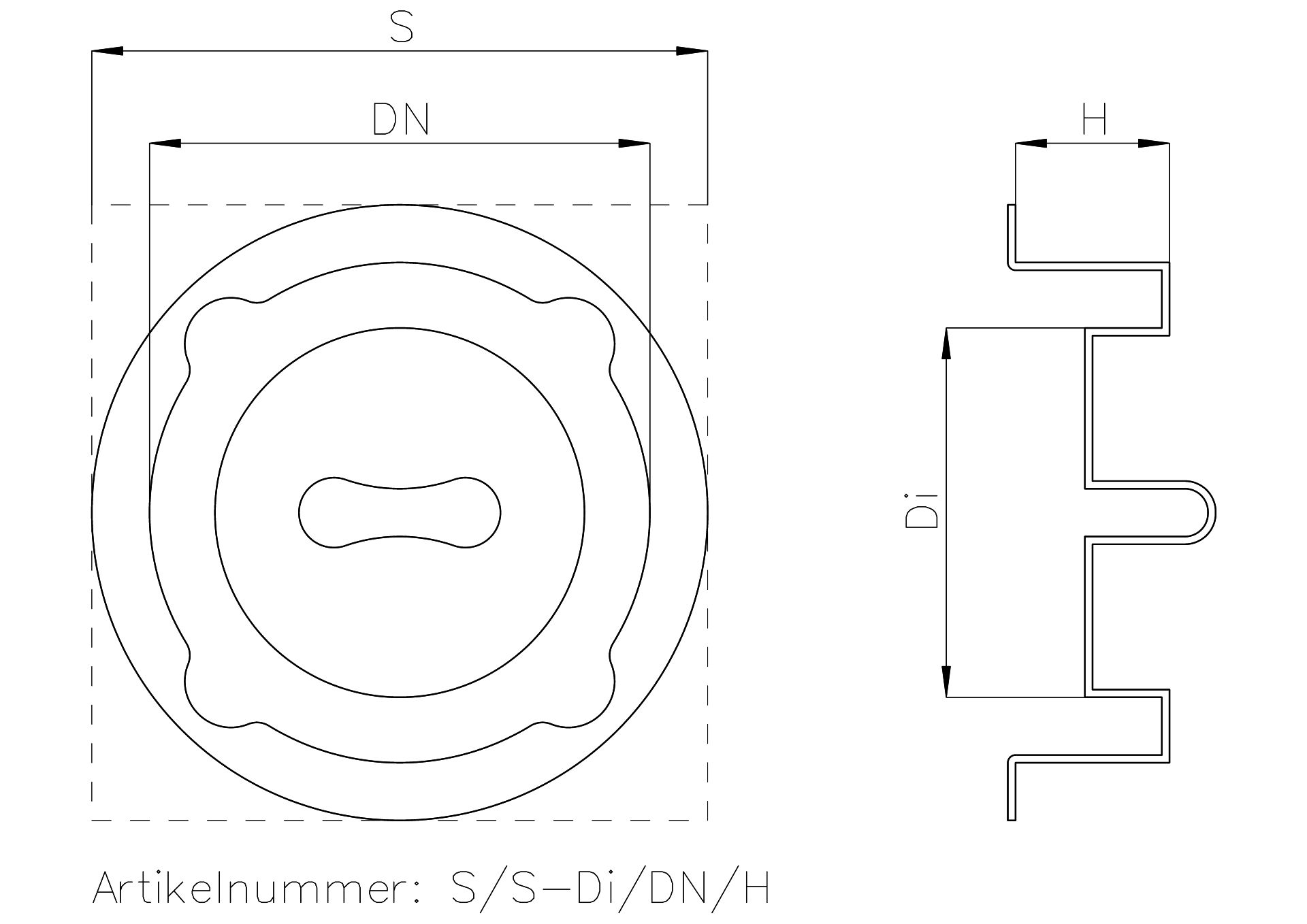

Item number | Item type | D - Nominal diameter | H - Clamping height | S - Punch size |
---|---|---|---|---|
KITTMANN 25-13/13/22 | Cap | 13 | 22 | Ø25 |
KITTMANN 25-14/14/11 | Cap | 14 | 11 | Ø25 |
KITTMANN 25-14/14/14 | Cap | 14 | 14 | Ø25 |
KITTMANN 30-16/16/32 | Cap | 16 | 32 | Ø30 |
KITTMANN 35-16/20/20 | Cap | 16 | 20 | Ø35 |
KITTMANN 30-17/17/11 | Cap | 17 | 11 | Ø30 |
KITTMANN 27-18/18/21 | Cap | 18 | 21 | Ø27 |
KITTMANN 30-18/18/12 | Cap | 18 | 12 | Ø30 |
KITTMANN 30-19/19/17 | Cap | 19 | 16 | Ø30 |
KITTMANN 35-22/22/13 | Cap | 22 | 13 | Ø35 |
KITTMANN 32-23/23/11 | Cap | 23 | 11 | Ø32 |
KITTMANN 32-23/23/11-2 | Cap | 23 | 11 | Ø32 |
KITTMANN 32-23/23/14 | Cap | 23 | 14 | Ø32 |
KITTMANN 36-24/24/25 | Cap | 24 | 25 | Ø36 |
KITTMANN 36/42-26/26/16 | Cap | 26 | 16 | 36x42 |
KITTMANN 35-27/27/14 | Cap | 27 | 14 | Ø35 |
KITTMANN 50-32/39/13 | Cap | 39 | 13 | Ø50 |
KITTMANN 55-32/44/30 | Cap | 44 | 30 | Ø55 |
KITTMANN 70-46/60/36 | Cap | 60 | 36 | Ø70 |
KITTMANN 78-60/65/20 | Cap | 60 | 20 | Ø78 |
KITTMANN 72-60/60/17 | Cap | 60 | 17 | Ø72 |
KITTMANN 72-61/61/17 | Cap | 61 | 17 | Ø72 |
KITTMANN 80-54/68/16 | Cap | 68 | 16 | Ø80 |
KITTMANN 104-65/95/25 | Cap | 95 | 25 | Ø104 |

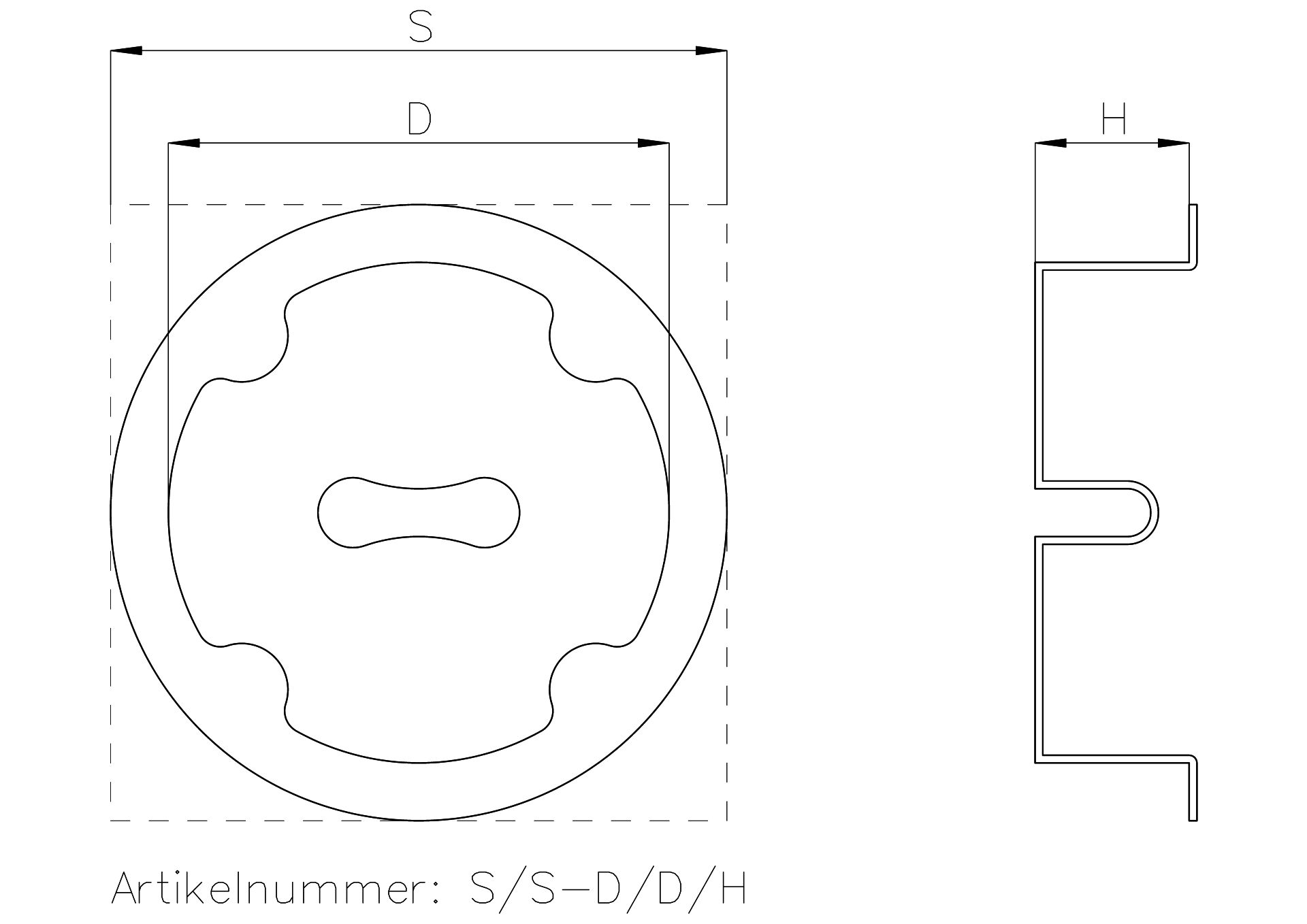

Item number | Item type | D - Nominal diameter | H - Clamping height | S - Punch size |
---|---|---|---|---|
KITTMANN 20-8/8/8 | Cover | 8 | 8 | Ø20 |
KITTMANN 29/48-9/9/8 | Cover | 9 | 8 | 29x48 |
KITTMANN 17/23-10/10/8 | Cover | 10 | 8 | 17x23 |
KITTMANN 20-12/12/7 | Cover | 12 | 7 | Ø20 |
KITTMANN 20/28-12/12/10 | Cover | 12 | 8 | 20x28 |
KITTMANN 19/36-12/12/8 | Cover | 12 | 8 | 19x36 |
KITTMANN 33/44-12/12/8 | Cover | 12 | 8 | 33x44 |
KITTMANN 23/32-15/15/12 | Cover | 15 | 12 | 23x32 |
KITTMANN 26/35-17/17/14 | Cover | 17 | 14 | 26x35 |
KITTMANN 26/112-18/18/9 | Cover | 18 | 9 | 26x112 |
KITTMANN 29/39-20/20/16 | Cover | 20 | 16 | 29x39 |
KITTMANN 30/62-24/24/15 | Cover | 24 | 15 | 30x62 |
KITTMANN 35/45-25/25/18 | Cover | 25 | 18 | 35x45 |
KITTMANN 40/54-30/30/11 | Cover | 30 | 11 | 40x54 |
KITTMANN 41/55-30/30/20 | Cover | 30 | 20 | 41x55 |
KITTMANN 36/57-30/30/11 | Cover | 30 | 11 | 36x57 |
KITTMANN 50-36/36/12 | Cover | 36 | 12 | Ø50 |
KITTMANN 55-39/39/12 | Cover | 39 | 12 | Ø55 |
KITTMANN 53/68-40/40/24 | Cover | 40 | 24 | 53x68 |
KITTMANN 55-42/42/14 | Cover | 42 | 14 | Ø55 |
KITTMANN 70-45/45/13 | Cover | 45 | 13 | Ø70 |
KITTMANN 55-47/47/12 | Cover | 47 | 12 | Ø55 |
KITTMANN 70-51/51/12 | Cover | 51 | 12 | Ø70 |
KITTMANN 65-52/52/15 | Cover | 52 | 15 | Ø65 |
KITTMANN 65-54/54/23 | Cover | 54 | 23 | Ø65 |
KITTMANN 65-55/55/23 | Cover | 55 | 23 | Ø65 |
KITTMANN 70-58/58/20 | Cover | 58 | 20 | Ø70 |
KITTMANN 90/104-58/58/20 | Cover | 58 | 20 | 90x104 |
KITTMANN 80-59/59/16 | Cover | 59 | 16 | Ø80 |
KITTMANN 70-59/59/16 | Cover | 59 | 16 | Ø70 |
KITTMANN 73/78-59/59/16 | Cover | 59 | 16 | 73x78 |
KITTMANN 70-62/62/21 | Cover | 62 | 21 | Ø70 |
KITTMANN 73/78-62/62/24 | Cover | 62 | 24 | 73x78 |
KITTMANN 73/75-63/63/18 | Cover | 63 | 18 | 73x75 |
KITTMANN 73/75-65/65/20 | Cover | 65 | 20 | 73x75 |
KITTMANN 73/75-65/65/22 | Cover | 65 | 22 | 73x75 |
KITTMANN 73/85-65/65/20 | Cover | 65 | 20 | 73x85 |
KITTMANN 73/85-65/65/22 | Cover | 65 | 22 | 73x85 |
KITTMANN 73/80-66/66/10 | Cover | 66 | 10 | 73x80 |
KITTMANN 80-68/68/18 | Cover | 68 | 18 | Ø80 |
KITTMANN 80-69/69/22 | Cover | 69 | 22 | Ø80 |
KITTMANN 80-71/71/22 | Cover | 71 | 22 | Ø80 |
KITTMANN 88-76/76/16 | Cover | 76 | 16 | Ø88 |
KITTMANN 90-78/78/20 | Cover | 78 | 20 | Ø90 |
KITTMANN 90-80/80/18 | Cover | 80 | 18 | Ø90 |
KITTMANN 90-80/80/19 | Cover | 80 | 19 | Ø90 |
KITTMANN 90-80/80/25 | Cover | 80 | 25 | Ø90 |
KITTMANN 90/100-80/80/25 | Cover | 80 | 25 | 90x100 |
KITTMANN 90-81/81/21 | Cover | 81 | 21 | Ø90 |
KITTMANN 90-81/81/23 | Cover | 81 | 23 | Ø90 |
KITTMANN 90/110-81/81/23 | Cover | 81 | 23 | 90x110 |
KITTMANN 90-82/82/24 | Cover | 82 | 24 | Ø90 |
KITTMANN 96-84/84/19 | Cover | 84 | 19 | Ø96 |
KITTMANN 100-87/87/22 | Cover | 87 | 22 | Ø100 |
KITTMANN 100-88/88/25 | Cover | 88 | 25 | Ø100 |
KITTMANN 100-91/91/22 | Cover | 91 | 22 | Ø100 |
KITTMANN 104-95/95/19 | Cover | 95 | 19 | Ø104 |
KITTMANN 104-95/95/20 | Cover | 95 | 20 | Ø104 |
KITTMANN 104-95/95/21 | Cover | 95 | 21 | Ø104 |
KITTMANN 107-95/95/20 | Cover | 95 | 20 | Ø107 |
